##Single node tests
Test 1. Single Card Performance BF16 Matrix Multiplication
Test 2. Single Card Performance Qwen2.5-32B Model Training Performance (BF16)
Test 3. Single Card Training Performance Qwen2.5-32B Model Training Performance (BF16)
Test 4. Single Node Collective Communication P2P Bandwidth
Test 5. Single Node Collective Communication RCCL - AllReduce Performance
Test 6. Single Node Collective Communication RCCL - All2All Performance
Test 7. Single Node Collective Communication Mori-EP
##Multi-node tests
Test 8. Multi Node Collective Communication ib_write_bw Test
Test 9. Multi Node Collective Communication ib_write_bw GDR Test
Test 10. Multi Node Collective Communication Mori-EP
Test 11. Multi Node Collective Communication RCCL - AllReduce Bandwidth
Test 12. Multi Node Collective Communication RCCL - AlltoAll Bandwidth
Install docker
sudo dnf remove -y podman buildah containers-common
sudo dnf install -y dnf-plugins-core
sudo dnf config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo
sudo dnf install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin
sudo systemctl enable --now docker
sudo usermod -aG docker $USER
newgrp docker
docker run hello-world #test docker
Clone the alibaba repository as below:
git clone https://github.com/prasad-nair-amd/alibaba.git
sudo docker pull prasadnairamd/rocm-tests:latest
docker run --rm --device=/dev/kfd --device=/dev/dri --group-add video --ipc=host --network=host --cap-add=SYS_PTRACE --security-opt seccomp=unconfined prasadnairamd/rocm-tests python3 standard_gem.py
Access the Qwen_alibaba.tar file : https://drive.google.com/file/d/1UW0TwdFVzXI69cAmeTBG1xEftcRT2JML/view?usp=drive_link
Follow the steps below:
$ cd qwen
$ bash set_env
$ cd Training-Benchmark
$ bash scripts/MI355/perf_test_qwen2.5_32b.sh
# result are under this directory
# ls qwen/Training-Benchmark/third_party/Primus/output
the result file is : log_mp_pretrain_qwen2.5_32B-BF16-pretrain.txt
Instructions same as Test 2. You can configure the script to make it run on 1 GPU or 8 GPU Access the Qwen_alibaba.tar file in this repo and untar the file. Follow the steps below:
$ cd qwen
$ bash set_env
$ cd Training-Benchmark
$ bash scripts/MI355/perf_test_qwen2.5_32b.sh
# result are under this directory
# ls qwen/Training-Benchmark/third_party/Primus/output
the result file is : log_mp_pretrain_qwen2.5_32B-BF16-pretrain.txt
git clone https://github.com/prasad-nair-amd/rapido.git
cd rapido
python3 rapido-collect.py -a -m -p -v
# a json file will be generated. Use the json file in the below command
python3 rapido-report.py -f1 serverinfo_Aliyun.json -o p2p_report.html

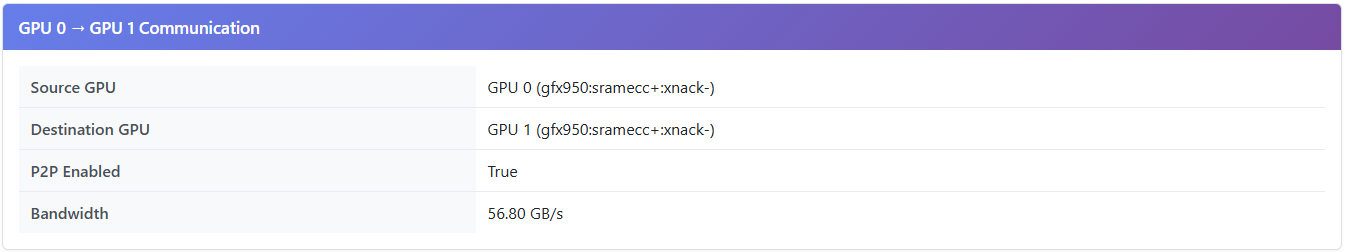

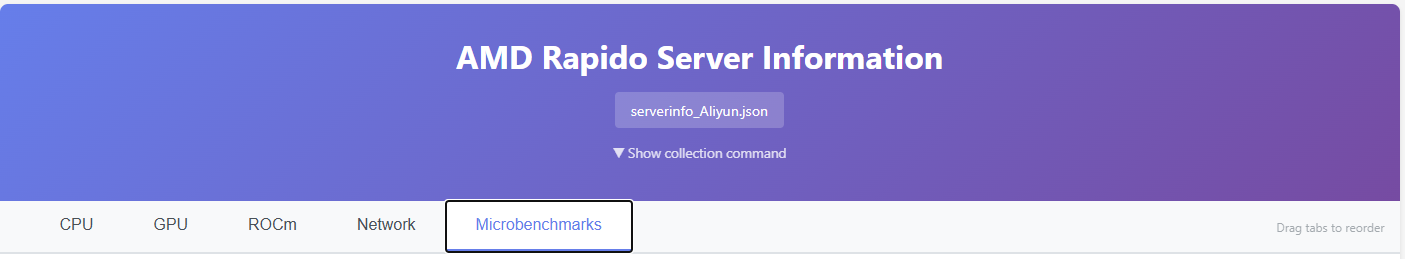

# a html report called p2p_report.html is generated . Under the microbenchmaks tab you will see the P2P bandwidth test results
sudo docker pull prasadnairamd/rccl-tests:latest
docker run --rm --device=/dev/kfd --device=/dev/dri --group-add video --ipc=host --network=host --cap-add=SYS_PTRACE --security-opt seccomp=unconfined prasadnairamd/rccl-tests ./build/all_reduce_perf -f 2 -g 8 -b 4 -e 1G
[vultr@Aliyun3 ~]$ docker run --rm --device=/dev/kfd --device=/dev/dri --group-add video --ipc=host --network=host --cap-add=SYS_PTRACE --security-opt seccomp=unconfined prasadnairamd/rccl-tests ./build/all_reduce_perf -f 2 -g 8 -b 4 -e 1G
# rccl-tests version 2.17.9-develop:2596ca5f71 rccl-headers=22803 rccl-library=22707
# Collective test starting: all_reduce_perf
# nThread 1 nGpus 8 minBytes 4 maxBytes 1073741824 step: 2(factor) warmup iters: 1 iters: 20 agg iters: 1 validation: 1 graph: 0
#
# Using devices
# Rank 0 Group 0 Pid 1 on Aliyun3 device 0 [0000:05:00] AMD Radeon Graphics
# Rank 1 Group 0 Pid 1 on Aliyun3 device 1 [0000:15:00] AMD Radeon Graphics
# Rank 2 Group 0 Pid 1 on Aliyun3 device 2 [0000:65:00] AMD Radeon Graphics
# Rank 3 Group 0 Pid 1 on Aliyun3 device 3 [0000:75:00] AMD Radeon Graphics
# Rank 4 Group 0 Pid 1 on Aliyun3 device 4 [0000:85:00] AMD Radeon Graphics
# Rank 5 Group 0 Pid 1 on Aliyun3 device 5 [0000:95:00] AMD Radeon Graphics
# Rank 6 Group 0 Pid 1 on Aliyun3 device 6 [0000:e5:00] AMD Radeon Graphics
# Rank 7 Group 0 Pid 1 on Aliyun3 device 7 [0000:f5:00] AMD Radeon Graphics
#
# out-of-place in-place
# size count type redop root time algbw busbw #wrong time algbw busbw #wrong
# (B) (elements) (us) (GB/s) (GB/s) (us) (GB/s) (GB/s)
4 1 float sum -1 42.02 0.00 0.00 0 37.48 0.00 0.00 0
8 2 float sum -1 35.49 0.00 0.00 0 34.42 0.00 0.00 0
16 4 float sum -1 35.80 0.00 0.00 0 34.39 0.00 0.00 0
32 8 float sum -1 35.99 0.00 0.00 0 34.62 0.00 0.00 0
64 16 float sum -1 35.79 0.00 0.00 0 34.45 0.00 0.00 0
128 32 float sum -1 35.83 0.00 0.01 0 34.34 0.00 0.01 0
256 64 float sum -1 35.79 0.01 0.01 0 34.32 0.01 0.01 0
512 128 float sum -1 34.36 0.01 0.03 0 34.48 0.01 0.03 0
1024 256 float sum -1 34.29 0.03 0.05 0 33.52 0.03 0.05 0
2048 512 float sum -1 33.50 0.06 0.11 0 34.73 0.06 0.10 0
4096 1024 float sum -1 32.97 0.12 0.22 0 33.08 0.12 0.22 0
8192 2048 float sum -1 31.98 0.26 0.45 0 33.33 0.25 0.43 0
16384 4096 float sum -1 33.09 0.50 0.87 0 33.20 0.49 0.86 0
32768 8192 float sum -1 32.95 0.99 1.74 0 34.55 0.95 1.66 0
65536 16384 float sum -1 33.44 1.96 3.43 0 32.07 2.04 3.58 0
131072 32768 float sum -1 37.83 3.46 6.06 0 38.94 3.37 5.89 0
262144 65536 float sum -1 38.79 6.76 11.83 0 37.17 7.05 12.34 0
524288 131072 float sum -1 39.01 13.44 23.52 0 41.67 12.58 22.02 0
1048576 262144 float sum -1 37.37 28.06 49.11 0 37.64 27.86 48.75 0
2097152 524288 float sum -1 39.65 52.89 92.55 0 39.43 53.18 93.07 0
4194304 1048576 float sum -1 47.95 87.47 153.07 0 48.54 86.41 151.22 0
8388608 2097152 float sum -1 71.12 117.94 206.40 0 71.13 117.94 206.39 0
16777216 4194304 float sum -1 116.74 143.71 251.49 0 118.08 142.08 248.64 0
33554432 8388608 float sum -1 183.45 182.91 320.09 0 182.32 184.04 322.07 0
67108864 16777216 float sum -1 324.09 207.07 362.37 0 323.75 207.29 362.76 0
134217728 33554432 float sum -1 611.47 219.50 384.13 0 611.59 219.46 384.05 0
268435456 67108864 float sum -1 1188.45 225.87 395.27 0 1190.90 225.41 394.46 0
536870912 134217728 float sum -1 2351.27 228.33 399.58 0 2347.45 228.70 400.23 0
1073741824 268435456 float sum -1 4667.81 230.03 402.55 0 4675.42 229.66 401.90 0
# Out of bounds values : 0 OK
# Avg bus bandwidth : 105.615
#
# Collective test concluded: all_reduce_perf
sudo docker pull prasadnairamd/rccl-tests:latest
docker run --rm --device=/dev/kfd --device=/dev/dri --group-add video --ipc=host --network=host --cap-add=SYS_PTRACE --security-opt seccomp=unconfined prasadnairamd/rccl-tests ./build/alltoall_perf -b 8 -e 128M -f 2 -g 8
[vultr@Aliyun3 ~]$ docker run --rm --device=/dev/kfd --device=/dev/dri --group-add video --ipc=host --network=host --cap-add=SYS_PTRACE --security-opt seccomp=unconfined prasadnairamd/rccl-tests ./build/alltoall_perf -b 8 -e 128M -f 2 -g 8
# rccl-tests version 2.17.9-develop:2596ca5f71 rccl-headers=22803 rccl-library=22707
# Collective test starting: alltoall_perf
# nThread 1 nGpus 8 minBytes 8 maxBytes 134217728 step: 2(factor) warmup iters: 1 iters: 20 agg iters: 1 validation: 1 graph: 0
#
# Using devices
# Rank 0 Group 0 Pid 1 on Aliyun3 device 0 [0000:05:00] AMD Radeon Graphics
# Rank 1 Group 0 Pid 1 on Aliyun3 device 1 [0000:15:00] AMD Radeon Graphics
# Rank 2 Group 0 Pid 1 on Aliyun3 device 2 [0000:65:00] AMD Radeon Graphics
# Rank 3 Group 0 Pid 1 on Aliyun3 device 3 [0000:75:00] AMD Radeon Graphics
# Rank 4 Group 0 Pid 1 on Aliyun3 device 4 [0000:85:00] AMD Radeon Graphics
# Rank 5 Group 0 Pid 1 on Aliyun3 device 5 [0000:95:00] AMD Radeon Graphics
# Rank 6 Group 0 Pid 1 on Aliyun3 device 6 [0000:e5:00] AMD Radeon Graphics
# Rank 7 Group 0 Pid 1 on Aliyun3 device 7 [0000:f5:00] AMD Radeon Graphics
#
# out-of-place in-place
# size count type redop root time algbw busbw #wrong time algbw busbw #wrong
# (B) (elements) (us) (GB/s) (GB/s) (us) (GB/s) (GB/s)
0 0 float none -1 0.94 0.00 0.00 0 0.76 0.00 0.00 N/A
0 0 float none -1 0.73 0.00 0.00 0 0.72 0.00 0.00 N/A
0 0 float none -1 0.79 0.00 0.00 0 0.82 0.00 0.00 N/A
0 0 float none -1 0.72 0.00 0.00 0 0.82 0.00 0.00 N/A
128 4 float none -1 40.87 0.00 0.00 0 59.46 0.00 0.00 N/A
256 8 float none -1 30.80 0.01 0.01 0 47.19 0.01 0.00 N/A
512 16 float none -1 31.13 0.02 0.01 0 47.45 0.01 0.01 N/A
1024 32 float none -1 29.83 0.03 0.03 0 46.95 0.02 0.02 N/A
2048 64 float none -1 29.78 0.07 0.06 0 48.13 0.04 0.04 N/A
4096 128 float none -1 30.82 0.13 0.12 0 46.50 0.09 0.08 N/A
8192 256 float none -1 29.89 0.27 0.24 0 46.53 0.18 0.15 N/A
16384 512 float none -1 33.01 0.50 0.43 0 47.67 0.34 0.30 N/A
32768 1024 float none -1 32.79 1.00 0.87 0 47.85 0.68 0.60 N/A
65536 2048 float none -1 32.40 2.02 1.77 0 50.74 1.29 1.13 N/A
131072 4096 float none -1 31.57 4.15 3.63 0 51.60 2.54 2.22 N/A
262144 8192 float none -1 37.49 6.99 6.12 0 57.08 4.59 4.02 N/A
524288 16384 float none -1 36.50 14.36 12.57 0 57.38 9.14 8.00 N/A
1048576 32768 float none -1 37.45 28.00 24.50 0 49.02 21.39 18.72 N/A
2097152 65536 float none -1 37.20 56.38 49.33 0 53.73 39.03 34.15 N/A
4194304 131072 float none -1 36.10 116.17 101.65 0 57.70 72.69 63.61 N/A
8388608 262144 float none -1 38.98 215.23 188.32 0 58.33 143.80 125.83 N/A
16777216 524288 float none -1 59.45 282.19 246.91 0 62.17 269.87 236.14 N/A
33554432 1048576 float none -1 101.79 329.63 288.43 0 109.36 306.83 268.48 N/A
67108864 2097152 float none -1 196.69 341.19 298.54 0 199.69 336.06 294.05 N/A
134217728 4194304 float none -1 364.47 368.25 322.22 0 371.15 361.62 316.42 N/A
# Out of bounds values : 0 OK
# Avg bus bandwidth : 58.3947
#
# Collective test concluded: alltoall_perf
#
$ ./run_intra_mori.sh
------------------------------------------------------------
[Gloo] Rank 0 is connected to 7 peer ranks. Expected number of connected peer ranks is : 7
[Gloo] Rank 1 is connected to 7 peer ranks. Expected number of connected peer ranks is : 7
[Gloo] Rank 2 is connected to 7 peer ranks. Expected number of connected peer ranks is : 7
[Gloo] Rank 3 is connected to 7 peer ranks. Expected number of connected peer ranks is : 7
[Gloo] Rank 4 is connected to 7 peer ranks. Expected number of connected peer ranks is : 7
[Gloo] Rank 5 is connected to 7 peer ranks. Expected number of connected peer ranks is : 7
[Gloo] Rank 7 is connected to 7 peer ranks. Expected number of connected peer ranks is : 7
[Gloo] Rank 6 is connected to 7 peer ranks. Expected number of connected peer ranks is : 7
============================================================
Benchmarking with dispatch_block_num=80, dispatch_warp_per_block=16 combine_block_num=80, combine_warp_per_block=4
============================================================
Dispatch result:
Round 0 duration(us) [848.5, 846.1, 846.5, 847.7, 849.3, 850.2, 845.9, 848.4] bandwidth(GB/s) [366.52, 366.96, 365.92, 366.6, 366.38, 365.73, 367.83, 365.4] avg bytes(MB) 296.27 lat 847.8 bw 366.42 / 553.46
Round 1 duration(us) [848.9, 847.0, 848.3, 851.5, 849.9, 851.5, 847.5, 849.3] bandwidth(GB/s) [366.37, 366.59, 365.14, 364.96, 366.14, 365.17, 367.16, 365.01] avg bytes(MB) 296.27 lat 849.2 bw 365.82 / 552.55
Round 2 duration(us) [848.3, 848.1, 848.5, 849.8, 849.8, 851.0, 847.5, 849.9] bandwidth(GB/s) [366.61, 366.11, 365.06, 365.69, 366.19, 365.36, 367.15, 364.77] avg bytes(MB) 296.27 lat 849.1 bw 365.87 / 552.63
Round 3 duration(us) [843.0, 841.0, 842.4, 842.1, 843.8, 843.1, 842.3, 843.5] bandwidth(GB/s) [368.94, 369.21, 367.72, 369.0, 368.79, 368.82, 369.4, 367.51] avg bytes(MB) 296.27 lat 842.7 bw 368.67 / 556.87
Round 4 duration(us) [849.5, 847.4, 849.5, 849.9, 849.6, 851.9, 847.9, 851.0] bandwidth(GB/s) [366.1, 366.38, 364.66, 365.61, 366.25, 364.99, 366.96, 364.3] avg bytes(MB) 296.27 lat 849.6 bw 365.66 / 552.31
Round 5 duration(us) [846.3, 845.4, 845.1, 848.7, 846.5, 848.9, 847.1, 848.1] bandwidth(GB/s) [367.5, 367.28, 366.52, 366.16, 367.6, 366.28, 367.33, 365.55] avg bytes(MB) 296.27 lat 847.0 bw 366.78 / 554.00
Round 6 duration(us) [850.4, 848.0, 850.8, 850.4, 851.1, 853.4, 849.9, 850.7] bandwidth(GB/s) [365.71, 366.12, 364.07, 365.41, 365.6, 364.36, 366.1, 364.44] avg bytes(MB) 296.27 lat 850.6 bw 365.23 / 551.66
Round 7 duration(us) [848.2, 847.6, 847.5, 848.9, 849.2, 849.9, 846.9, 849.5] bandwidth(GB/s) [366.68, 366.3, 365.48, 366.06, 366.44, 365.83, 367.43, 364.93] avg bytes(MB) 296.27 lat 848.5 bw 366.14 / 553.05
Round 8 duration(us) [845.5, 845.3, 845.7, 846.6, 848.1, 847.8, 845.2, 847.0] bandwidth(GB/s) [367.83, 367.33, 366.28, 367.07, 366.9, 366.76, 368.14, 366.0] avg bytes(MB) 296.27 lat 846.4 bw 367.04 / 554.40
Round 9 duration(us) [848.6, 845.6, 846.5, 848.1, 848.5, 850.1, 846.0, 850.0] bandwidth(GB/s) [366.49, 367.19, 365.92, 366.42, 366.74, 365.74, 367.79, 364.7] avg bytes(MB) 296.27 lat 847.9 bw 366.37 / 553.39
Combine result:
Round 0 duration(us) [808.7, 810.0, 810.3, 808.6, 807.2, 806.8, 810.4, 808.1] bandwidth(GB/s) [384.56, 383.3, 382.3, 384.29, 385.51, 385.41, 383.95, 383.63] avg bytes(MB) 296.27 lat 808.8 bw 384.12 / 580.20
Round 1 duration(us) [809.5, 810.8, 809.5, 806.8, 807.9, 806.1, 810.8, 808.0] bandwidth(GB/s) [384.19, 382.95, 382.67, 385.16, 385.15, 385.74, 383.77, 383.68] avg bytes(MB) 296.27 lat 808.7 bw 384.16 / 580.27
Round 2 duration(us) [809.1, 808.9, 808.5, 808.0, 807.4, 805.9, 809.5, 807.4] bandwidth(GB/s) [384.41, 383.85, 383.14, 384.57, 385.4, 385.82, 384.38, 383.96] avg bytes(MB) 296.27 lat 808.1 bw 384.44 / 580.68
Round 3 duration(us) [808.9, 811.0, 808.7, 809.6, 808.1, 808.2, 808.5, 807.1] bandwidth(GB/s) [384.46, 382.86, 383.05, 383.84, 385.09, 384.74, 384.86, 384.11] avg bytes(MB) 296.27 lat 808.8 bw 384.13 / 580.21
Round 4 duration(us) [808.6, 810.0, 808.5, 808.9, 808.6, 805.2, 809.9, 807.0] bandwidth(GB/s) [384.64, 383.33, 383.15, 384.17, 384.83, 386.16, 384.18, 384.17] avg bytes(MB) 296.27 lat 808.3 bw 384.33 / 580.51
Round 5 duration(us) [808.7, 809.9, 809.7, 806.2, 808.1, 805.9, 808.1, 807.4] bandwidth(GB/s) [384.58, 383.34, 382.55, 385.43, 385.08, 385.8, 385.06, 383.97] avg bytes(MB) 296.27 lat 808.0 bw 384.48 / 580.74
Round 6 duration(us) [808.1, 810.4, 807.4, 807.6, 807.6, 805.4, 809.0, 808.0] bandwidth(GB/s) [384.88, 383.12, 383.63, 384.77, 385.32, 386.08, 384.61, 383.68] avg bytes(MB) 296.27 lat 807.9 bw 384.51 / 580.79
Round 7 duration(us) [809.3, 809.8, 810.4, 808.5, 808.0, 807.2, 810.8, 807.4] bandwidth(GB/s) [384.27, 383.42, 382.25, 384.34, 385.14, 385.18, 383.78, 383.95] avg bytes(MB) 296.27 lat 808.9 bw 384.04 / 580.08
Round 8 duration(us) [809.1, 810.0, 809.4, 808.6, 806.9, 806.8, 809.8, 808.2] bandwidth(GB/s) [384.39, 383.3, 382.69, 384.32, 385.66, 385.4, 384.27, 383.6] avg bytes(MB) 296.27 lat 808.6 bw 384.20 / 580.33
Round 9 duration(us) [808.1, 811.4, 810.2, 808.3, 807.8, 806.3, 810.2, 806.0] bandwidth(GB/s) [384.84, 382.67, 382.34, 384.43, 385.2, 385.62, 384.04, 384.62] avg bytes(MB) 296.27 lat 808.5 bw 384.22 / 580.35
End-to-end result:
Note: e2e is one full-graph replay; separate results use two graph replays, so sep total is usually higher.
Round 0 e2e(us) [1632.8, 1633.1, 1632.9, 1633.2, 1633.0, 1633.1, 1633.6, 1633.3]
Round 1 e2e(us) [1635.2, 1634.1, 1634.1, 1633.8, 1634.1, 1633.7, 1634.4, 1634.2]
Round 2 e2e(us) [1636.9, 1637.8, 1637.1, 1637.0, 1637.3, 1636.8, 1637.7, 1637.0]
Round 3 e2e(us) [1633.2, 1633.3, 1633.7, 1633.2, 1633.1, 1633.1, 1633.5, 1633.1]
Round 4 e2e(us) [1632.9, 1633.5, 1633.1, 1632.5, 1633.0, 1632.7, 1633.1, 1633.0]
Round 5 e2e(us) [1634.2, 1634.2, 1633.6, 1633.4, 1633.7, 1633.0, 1633.9, 1633.9]
Round 6 e2e(us) [1636.1, 1635.7, 1636.5, 1635.8, 1636.4, 1635.6, 1636.0, 1636.2]
Round 7 e2e(us) [1635.3, 1635.5, 1635.2, 1635.5, 1635.3, 1634.8, 1635.4, 1635.3]
Round 8 e2e(us) [1636.4, 1636.1, 1636.2, 1636.6, 1636.9, 1636.0, 1636.7, 1636.3]
Round 9 e2e(us) [1639.5, 1639.0, 1638.7, 1639.1, 1638.8, 1638.6, 1638.7, 1639.4]
Stop amd rm the docker mori
mori
For running IB bandwidth test you should first find the mapping of rdma interfaces between two nodes.
You can refer to the document in the repo for running the test in parallel.
You can use the script provided in the repo (ionic_mapping.sh) to findout the mapping of rdma interfaces.
In the below example ionic_7 interface is mapped to ionic_1
[vultr@Aliyun1 ~]$ sudo ib_write_bw -d ionic_7 -x 1 -b -q 4 -F -a -n 5000 --report_gbits -p 10000 &
[1] 650300
[vultr@Aliyun1 ~]$ Using sampled CPU speed 3295 MHz over reported speed 5037 MHz
************************************
* Waiting for client to connect... *
************************************
Connected: Thu Apr 16 05:49:19 2026
---------------------------------------------------------------------------------------
RDMA_Write Bidirectional BW Test
Dual-port : OFF Device : ionic_7
Number of qps : 4 Transport type : IB
Connection type : RC Using SRQ : OFF
PCIe relax order: ON Lock-free : OFF
ibv_wr* API : OFF Using DDP : OFF
TX depth : 128
CQ Moderation : 100
CQE Poll Batch : 16
Mtu : 4096[B]
Link type : Ethernet
CPU freq : 3295[MHz]
GID index : 1
Max inline data : 0[B]
rdma_cm QPs : OFF
Data ex. method : Ethernet
---------------------------------------------------------------------------------------
local address: LID 0000 QPN 0x0800 PSN 0x9755de RKey 0x00012d VAddr 0x007f5eff13f000
GID: 253:147:22:211:89:182:01:80:158:08:58:179:95:199:124:202
local address: LID 0000 QPN 0x0002 PSN 0x46d70 RKey 0x00012d VAddr 0x007f5eff93f000
GID: 253:147:22:211:89:182:01:80:158:08:58:179:95:199:124:202
local address: LID 0000 QPN 0x0801 PSN 0xe6b9fa RKey 0x00012d VAddr 0x007f5f0013f000
GID: 253:147:22:211:89:182:01:80:158:08:58:179:95:199:124:202
local address: LID 0000 QPN 0x0003 PSN 0xf26ac1 RKey 0x00012d VAddr 0x007f5f0093f000
GID: 253:147:22:211:89:182:01:80:158:08:58:179:95:199:124:202
remote address: LID 0000 QPN 0x0800 PSN 0x551dbe RKey 0x000143 VAddr 0x007fb3debff000
GID: 253:147:22:211:89:182:01:80:06:144:129:255:254:54:91:176
remote address: LID 0000 QPN 0x0002 PSN 0xe5c7d0 RKey 0x000143 VAddr 0x007fb3df3ff000
GID: 253:147:22:211:89:182:01:80:06:144:129:255:254:54:91:176
remote address: LID 0000 QPN 0x0801 PSN 0x8c74da RKey 0x000143 VAddr 0x007fb3dfbff000
GID: 253:147:22:211:89:182:01:80:06:144:129:255:254:54:91:176
remote address: LID 0000 QPN 0x0003 PSN 0xe83c21 RKey 0x000143 VAddr 0x007fb3e03ff000
GID: 253:147:22:211:89:182:01:80:06:144:129:255:254:54:91:176
---------------------------------------------------------------------------------------
#bytes #iterations BW peak[Gb/sec] BW average[Gb/sec] MsgRate[Mpps]
2 20000 0.147331 0.146472 9.154486
4 20000 0.30 0.30 9.239950
8 20000 0.60 0.59 9.224424
16 20000 1.20 1.18 9.235043
32 20000 1.94 1.92 7.496597
64 20000 3.87 3.84 7.499745
128 20000 7.75 7.69 7.506438
256 20000 15.52 15.40 7.520808
512 20000 31.04 30.79 7.516752
1024 20000 60.78 60.26 7.356253
2048 20000 123.25 122.10 7.452446
4096 20000 246.35 243.94 7.444587
8192 20000 485.25 481.20 7.342513
16384 20000 773.59 773.21 5.899086
32768 20000 776.90 776.75 2.963059
65536 20000 775.85 775.03 1.478245
131072 20000 777.86 777.81 0.741774
262144 20000 778.50 778.47 0.371202
524288 20000 778.95 778.93 0.185712
1048576 20000 779.09 779.08 0.092874
2097152 20000 779.16 779.16 0.046441
4194304 20000 779.16 779.16 0.023221
8388608 20000 779.21 779.21 0.011611
---------------------------------------------------------------------------------------
Completed: Thu Apr 16 05:49:32 2026
Total run time: 187.693s
[1]+ Done sudo ib_write_bw -d ionic_7 -x 1 -b -q 4 -F -a -n 5000 --report_gbits -p 10000
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
[vultr@Aliyun3 ~]$ sudo ib_write_bw -d ionic_1 -x 1 -b -q 4 -F -a -n 5000 --report_gbits -p 10000 66.42.116.72
---------------------------------------------------------------------------------------
RDMA_Write Bidirectional BW Test
Dual-port : OFF Device : ionic_1
Number of qps : 4 Transport type : IB
Connection type : RC Using SRQ : OFF
PCIe relax order: ON Lock-free : OFF
ibv_wr* API : OFF Using Enhanced Reorder : OFF
TX depth : 128
CQ Moderation : 100
CQE Poll Batch : Dynamic
Mtu : 4096[B]
Link type : Ethernet
GID index : 1
Max inline data : 0[B]
rdma_cm QPs : OFF
Data ex. method : Ethernet
---------------------------------------------------------------------------------------
local address: LID 0000 QPN 0x0800 PSN 0x551dbe RKey 0x000143 VAddr 0x007fb3debff000
GID: 253:147:22:211:89:182:01:80:06:144:129:255:254:54:91:176
local address: LID 0000 QPN 0x0002 PSN 0xe5c7d0 RKey 0x000143 VAddr 0x007fb3df3ff000
GID: 253:147:22:211:89:182:01:80:06:144:129:255:254:54:91:176
local address: LID 0000 QPN 0x0801 PSN 0x8c74da RKey 0x000143 VAddr 0x007fb3dfbff000
GID: 253:147:22:211:89:182:01:80:06:144:129:255:254:54:91:176
local address: LID 0000 QPN 0x0003 PSN 0xe83c21 RKey 0x000143 VAddr 0x007fb3e03ff000
GID: 253:147:22:211:89:182:01:80:06:144:129:255:254:54:91:176
remote address: LID 0000 QPN 0x0800 PSN 0x9755de RKey 0x00012d VAddr 0x007f5eff13f000
GID: 253:147:22:211:89:182:01:80:158:08:58:179:95:199:124:202
remote address: LID 0000 QPN 0x0002 PSN 0x46d70 RKey 0x00012d VAddr 0x007f5eff93f000
GID: 253:147:22:211:89:182:01:80:158:08:58:179:95:199:124:202
remote address: LID 0000 QPN 0x0801 PSN 0xe6b9fa RKey 0x00012d VAddr 0x007f5f0013f000
GID: 253:147:22:211:89:182:01:80:158:08:58:179:95:199:124:202
remote address: LID 0000 QPN 0x0003 PSN 0xf26ac1 RKey 0x00012d VAddr 0x007f5f0093f000
GID: 253:147:22:211:89:182:01:80:158:08:58:179:95:199:124:202
---------------------------------------------------------------------------------------
#bytes #iterations BW peak[Gb/sec] BW average[Gb/sec] MsgRate[Mpps]
2 20000 0.147331 0.146472 9.154486
4 20000 0.30 0.30 9.239950
8 20000 0.60 0.59 9.224424
16 20000 1.20 1.18 9.235043
32 20000 1.94 1.92 7.496597
64 20000 3.87 3.84 7.499745
128 20000 7.75 7.69 7.506438
256 20000 15.52 15.40 7.520808
512 20000 31.04 30.79 7.516752
1024 20000 60.78 60.26 7.356253
2048 20000 123.25 122.10 7.452446
4096 20000 246.35 243.94 7.444587
8192 20000 485.25 481.20 7.342513
16384 20000 773.59 773.21 5.899086
32768 20000 776.90 776.75 2.963059
65536 20000 775.85 775.03 1.478245
131072 20000 777.86 777.81 0.741774
262144 20000 778.50 778.47 0.371202
524288 20000 778.95 778.93 0.185712
1048576 20000 779.09 779.08 0.092874
2097152 20000 779.16 779.16 0.046441
4194304 20000 779.16 779.16 0.023221
8388608 20000 779.21 779.21 0.011611
---------------------------------------------------------------------------------------
Download the AINIC driver package file from here : AI NIC driver package
Testing GPUDirect RDMA (GDR) on AMD GPUs using ib_write_bw requires building the perftest package with ROCm support to enable direct memory access between the InfiniBand/RoCE NIC and AMD GPU memory, bypassing the CPU.
- Build Perftest for AMD ROCm You must compile perftest with ROCm enabled. Navigate to the driver directory:
bash tar -xvf ainic_bundle_1.117.5-a-82.tar.gz cd ainic_bundle_1.117.5-a-82/host_sw_pkg/ionic_driver/src/drivers-linux/perftest
Configure and build:
bash
./autogen.sh
./configure --prefix=pwd --enable-rocm --with-rocm=/opt/rocm
make
sudo make install
Verify installation: Run ib_write_bw -h and check for the --use_rocm flag.
- Prepare the System Load ib_peer_mem: Ensure the kernel module is loaded to allow IB devices to access ROCm memory.
bash lsmod | grep ib_peer_mem Enable P2P/Disable ACS: Ensure the NIC and GPU are on the same PCIe bridge and that PCIe Access Control Services (ACS) are disabled to allow Peer-to-Peer (P2P) traffic.
- Running the Test
Server Node: bash
-d is the IB device (e.g., mlx5_0), -a is bidirectional, --use_rocm allows GPU ./ib_write_bw -d <ib_device> --use_rocm=<gpu_id> -a for example : ./ib_write_bw -d ionic_1 -i 1 -F -x 1 -q 4 --tclass 104 -a --report_gbits -b -p 5001 --use_rocm=1
Client Node: bash ./ib_write_bw -d <ib_device> --use_rocm=<gpu_id> -a <server_ip> for example : ./ib_write_bw -d ionic_1 -i 1 -F -x 1 -q 4 --tclass 104 -a --report_gbits -b -p 5001 --use_rocm=1 66.42.116.72 Optional - DMABUF: If using a modern ROCm setup (e.g., MI300X), you can use --enable-rocm-dmabuf during configure and add --use_rocm_dmabuf to your run command for improved performance.
Server-side example :
[vultr@Aliyun1 perftest]$ ./ib_write_bw -d ionic_1 -i 1 -F -x 1 -q 4 --tclass 104 -a --report_gbits -b -p 5001 --use_rocm=1
Using sampled CPU speed 3295 MHz over reported speed 5008 MHz
************************************
* Waiting for client to connect... *
************************************
Connected: Thu Apr 23 01:20:55 2026
Using ROCm Device with ID: 1, Name: AMD Instinct MI355X, PCI Bus ID: 0x15, GCN Arch: gfx950:sramecc+:xnack-
allocated 67108864 bytes of GPU buffer at 0x7f9c1ee00000
---------------------------------------------------------------------------------------
RDMA_Write Bidirectional BW Test
Dual-port : OFF Device : ionic_1
Number of qps : 4 Transport type : IB
Connection type : RC Using SRQ : OFF
PCIe relax order: ON Lock-free : OFF
ibv_wr* API : OFF Using DDP : OFF
TX depth : 128
CQ Moderation : 100
CQE Poll Batch : 16
Mtu : 4096[B]
Link type : Ethernet
CPU freq : 3295[MHz]
GID index : 1
Max inline data : 0[B]
rdma_cm QPs : OFF
Use ROCm memory : ON
Data ex. method : Ethernet
---------------------------------------------------------------------------------------
local address: LID 0000 QPN 0x0800 PSN 0x2cf9f2 RKey 0x0001de VAddr 0x007f9c20e00000
GID: 253:147:22:211:89:182:01:79:06:144:129:255:254:58:54:80
local address: LID 0000 QPN 0x0002 PSN 0x9541f4 RKey 0x0001de VAddr 0x007f9c21600000
GID: 253:147:22:211:89:182:01:79:06:144:129:255:254:58:54:80
local address: LID 0000 QPN 0x0801 PSN 0x2fce2e RKey 0x0001de VAddr 0x007f9c21e00000
GID: 253:147:22:211:89:182:01:79:06:144:129:255:254:58:54:80
local address: LID 0000 QPN 0x0003 PSN 0x26bce5 RKey 0x0001de VAddr 0x007f9c22600000
GID: 253:147:22:211:89:182:01:79:06:144:129:255:254:58:54:80
remote address: LID 0000 QPN 0x0002 PSN 0x9b98a6 RKey 0x0001ee VAddr 0x007f50a4e00000
GID: 253:147:22:211:89:182:01:77:06:144:129:255:254:54:177:120
remote address: LID 0000 QPN 0x0800 PSN 0x348c98 RKey 0x0001ee VAddr 0x007f50a5600000
GID: 253:147:22:211:89:182:01:77:06:144:129:255:254:54:177:120
remote address: LID 0000 QPN 0x0003 PSN 0x41ee02 RKey 0x0001ee VAddr 0x007f50a5e00000
GID: 253:147:22:211:89:182:01:77:06:144:129:255:254:54:177:120
remote address: LID 0000 QPN 0x0801 PSN 0xe6c229 RKey 0x0001ee VAddr 0x007f50a6600000
GID: 253:147:22:211:89:182:01:77:06:144:129:255:254:54:177:120
---------------------------------------------------------------------------------------
#bytes #iterations BW peak[Gb/sec] BW average[Gb/sec] MsgRate[Mpps]
2 20000 0.147580 0.146905 9.181552
4 20000 0.30 0.30 9.255260
8 20000 0.60 0.59 9.264019
16 20000 1.19 1.19 9.287408
32 20000 2.38 2.37 9.265968
64 20000 4.78 4.76 9.295219
128 20000 9.52 9.49 9.272243
256 20000 19.05 18.99 9.270065
512 20000 38.15 38.05 9.288649
1024 20000 76.14 75.39 9.202821
2048 20000 151.97 150.88 9.209194
4096 20000 302.87 301.83 9.211057
8192 20000 600.97 577.28 8.808607
16384 20000 681.23 673.94 5.141754
32768 20000 684.39 682.26 2.602598
65536 20000 688.00 687.41 1.311139
131072 20000 689.06 688.63 0.656726
262144 20000 693.30 692.89 0.330395
524288 20000 695.82 695.40 0.165796
1048576 20000 697.11 696.64 0.083045
2097152 20000 697.43 696.98 0.041543
4194304 20000 697.87 697.42 0.020785
8388608 20000 698.41 697.97 0.010401
---------------------------------------------------------------------------------------
Completed: Thu Apr 23 01:21:05 2026
Total run time: 98.662s
deallocating GPU buffer 0x7f9c1ee00000
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Client-side example :
[vultr@Aliyun3 perftest]$ ./ib_write_bw -d ionic_1 -i 1 -F -x 1 -q 4 --tclass 104 -a --report_gbits -b -p 5001 --use_rocm=1 66.42.116.72
Using sampled CPU speed 3295 MHz over reported speed 5008 MHz
Connected: Thu Apr 23 01:20:55 2026
Using ROCm Device with ID: 1, Name: AMD Instinct MI355X, PCI Bus ID: 0x15, GCN Arch: gfx950:sramecc+:xnack-
allocated 67108864 bytes of GPU buffer at 0x7f50a2e00000
---------------------------------------------------------------------------------------
RDMA_Write Bidirectional BW Test
Dual-port : OFF Device : ionic_1
Number of qps : 4 Transport type : IB
Connection type : RC Using SRQ : OFF
PCIe relax order: ON Lock-free : OFF
ibv_wr* API : OFF Using DDP : OFF
TX depth : 128
CQ Moderation : 100
CQE Poll Batch : 16
Mtu : 4096[B]
Link type : Ethernet
CPU freq : 3295[MHz]
GID index : 1
Max inline data : 0[B]
rdma_cm QPs : OFF
Use ROCm memory : ON
Data ex. method : Ethernet
---------------------------------------------------------------------------------------
local address: LID 0000 QPN 0x0002 PSN 0x9b98a6 RKey 0x0001ee VAddr 0x007f50a4e00000
GID: 253:147:22:211:89:182:01:77:06:144:129:255:254:54:177:120
local address: LID 0000 QPN 0x0800 PSN 0x348c98 RKey 0x0001ee VAddr 0x007f50a5600000
GID: 253:147:22:211:89:182:01:77:06:144:129:255:254:54:177:120
local address: LID 0000 QPN 0x0003 PSN 0x41ee02 RKey 0x0001ee VAddr 0x007f50a5e00000
GID: 253:147:22:211:89:182:01:77:06:144:129:255:254:54:177:120
local address: LID 0000 QPN 0x0801 PSN 0xe6c229 RKey 0x0001ee VAddr 0x007f50a6600000
GID: 253:147:22:211:89:182:01:77:06:144:129:255:254:54:177:120
remote address: LID 0000 QPN 0x0800 PSN 0x2cf9f2 RKey 0x0001de VAddr 0x007f9c20e00000
GID: 253:147:22:211:89:182:01:79:06:144:129:255:254:58:54:80
remote address: LID 0000 QPN 0x0002 PSN 0x9541f4 RKey 0x0001de VAddr 0x007f9c21600000
GID: 253:147:22:211:89:182:01:79:06:144:129:255:254:58:54:80
remote address: LID 0000 QPN 0x0801 PSN 0x2fce2e RKey 0x0001de VAddr 0x007f9c21e00000
GID: 253:147:22:211:89:182:01:79:06:144:129:255:254:58:54:80
remote address: LID 0000 QPN 0x0003 PSN 0x26bce5 RKey 0x0001de VAddr 0x007f9c22600000
GID: 253:147:22:211:89:182:01:79:06:144:129:255:254:58:54:80
---------------------------------------------------------------------------------------
#bytes #iterations BW peak[Gb/sec] BW average[Gb/sec] MsgRate[Mpps]
2 20000 0.147580 0.146905 9.181552
4 20000 0.30 0.30 9.255260
8 20000 0.60 0.59 9.264019
16 20000 1.19 1.19 9.287408
32 20000 2.38 2.37 9.265968
64 20000 4.78 4.76 9.295219
128 20000 9.52 9.49 9.272243
256 20000 19.05 18.99 9.270065
512 20000 38.15 38.05 9.288649
1024 20000 76.14 75.39 9.202821
2048 20000 151.97 150.88 9.209194
4096 20000 302.87 301.83 9.211057
8192 20000 600.97 577.28 8.808607
16384 20000 681.23 673.94 5.141754
32768 20000 684.39 682.26 2.602598
65536 20000 688.00 687.41 1.311139
131072 20000 689.06 688.63 0.656726
262144 20000 693.30 692.89 0.330395
524288 20000 695.82 695.40 0.165796
1048576 20000 697.11 696.64 0.083045
2097152 20000 697.43 696.98 0.041543
4194304 20000 697.87 697.42 0.020785
8388608 20000 698.41 697.97 0.010401
---------------------------------------------------------------------------------------
Completed: Thu Apr 23 01:21:05 2026
Total run time: 10.032s
deallocating GPU buffer 0x7f50a2e00000
For running multinode Mori tests run the script on both nodes simultaneously.
You have to configure the r2.sh file inside the container to set the ip address of remote device.
$ ./run_inter_mori.sh
+----------------------------------------------------------------------------------------------+
| Dispatch Performance (bfloat16) |
+---------+-----------------------+-----------------------+---------------------+--------------+
| Metrics | RDMA Bandwidth (GB/s) | XGMI Bandwidth (GB/s) | LL Bandwidth (GB/s) | Latency (us) |
+---------+-----------------------+-----------------------+---------------------+--------------+
| Best | 76.1 | 248.88 | 308.6 | 1538.06 |
| Worst | 62.8 | 205.11 | 254.33 | 1861.22 |
| Average | 68.4 | 223.75 | 277.45 | 1714.7 |
+---------+-----------------------+-----------------------+---------------------+--------------+
+----------------------------------------------------------------------------------------------+
| Combine Performance (bfloat16) |
+---------+-----------------------+-----------------------+---------------------+--------------+
| Metrics | RDMA Bandwidth (GB/s) | XGMI Bandwidth (GB/s) | LL Bandwidth (GB/s) | Latency (us) |
+---------+-----------------------+-----------------------+---------------------+--------------+
| Best | 77.4 | 253.82 | 314.74 | 1510.17 |
| Worst | 64.53 | 210.95 | 261.58 | 1813.62 |
| Average | 70.66 | 231.15 | 286.62 | 1659.39 |
+---------+-----------------------+-----------------------+---------------------+--------------+
Avoid building by using docker image : docker pull prasadnairamd/rocm-multinode:7.2.2-complete Building RCCL docker takes half an hour. For building the docker clone the below repo. Do this on both the nodes you are trying to run the RCCL multi-node test :
git clone https://github.com/ROCm/rocm-systems.git -b users/atulkulk/mndock
cd /home/vultr/code/rocm-systems/projects/rccl/docker
time GPU_TARGETS="gfx950" python3 -m mnctl --launch-all --nic-type ainic --volume /home/vultr/fjw/drivers-linux:/root/cache/drivers-linux --post-setup post-setup/ --hostfile hostfile --dockerfile Dockerfile.Multinode.ALinux3 --verbose --rebuild 2>&1 | tee blddemo.log
How to run ( This step required only on one node, ensure that docker is running on both nodes)
docker exec -it rccl-mn /bin/bash
create a hostfile with following entry
[root@Aliyun3 workspace]# vim hostfile
66.42.116.72 slots=8
45.76.25.46 slots=8
running the test
[root@Aliyun3 workspace]# mpirun --mca btl_tcp_if_include eth1 --mca oob_tcp_if_include eth1 --hostfile hostfile -np 16 --allow-run-as-root -x NCCL_SOCKET_IFNAME=eth1 -x NCCL_IB_GID_INDEX=1 -x NCCL_GDR_FLUSH_DISABLE=1 -x NCCL_GDRCOPY_ENABLE=0 -x NCCL_IB_HCA=ionic_0,ionic_1,ionic_2,ionic_3,ionic_4,ionic_5,ionic_6,ionic_7 --mca btl ^vader,openib -x NCCL_IB_QPS_PER_CONNECTION=2 -x NCCL_IB_TC=104 -x NCCL_IB_FIFO_TC=184 -x NCCL_IGNORE_CPU_AFFINITY=1 -x NCCL_DEBUG=VERSION -x NET_OPTIONAL_RECV_COMPLETION=1 -x HSA_NO_SCRATCH_RECLAIM=1 -x RCCL_GDR_FLUSH_GPU_MEM_NO_RELAXED_ORDERING=0 -x NCCL_TOPO_DUMP_FILE=/tmp/system_run2.txt -x NCCL_IB_USE_INLINE=1 -x IONIC_LOCKFREE=all -x NCCL_PXN_DISABLE=0 /workspace/rocm-systems/projects/rccl-tests/build/all_reduce_perf -b 16 -e 16G -f 2 -g 1 -n 20 -c 1 -w 5
[1776961424.585035] [Aliyun1:3315 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776961424.585035] [Aliyun1:3315 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776961424.640401] [Aliyun1:3316 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776961424.640401] [Aliyun1:3316 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776961424.745584] [Aliyun1:3319 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776961424.745584] [Aliyun1:3319 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776961424.897036] [Aliyun1:3320 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776961424.897036] [Aliyun1:3320 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776961424.970278] [Aliyun1:3317 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776961424.970278] [Aliyun1:3317 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776961424.994705] [Aliyun1:3322 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776961424.994705] [Aliyun1:3322 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776961425.224937] [Aliyun1:3321 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776961425.224937] [Aliyun1:3321 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776961425.239146] [Aliyun1:3318 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776961425.239146] [Aliyun1:3318 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
# rccl-tests version 2.17.9-develop:4a65e8d rccl-headers=22707 rccl-library=22707
# Collective test starting: all_reduce_perf
# nThread 1 nGpus 1 minBytes 16 maxBytes 17179869184 step: 2(factor) warmup iters: 5 iters: 20 agg iters: 1 validation: 1 graph: 0
#
# Using devices
# Rank 0 Group 0 Pid 3379 on Aliyun3 device 0 [0000:05:00] AMD Radeon Graphics
# Rank 1 Group 0 Pid 3380 on Aliyun3 device 1 [0000:15:00] AMD Radeon Graphics
# Rank 2 Group 0 Pid 3381 on Aliyun3 device 2 [0000:65:00] AMD Radeon Graphics
# Rank 3 Group 0 Pid 3382 on Aliyun3 device 3 [0000:75:00] AMD Radeon Graphics
# Rank 4 Group 0 Pid 3383 on Aliyun3 device 4 [0000:85:00] AMD Radeon Graphics
# Rank 5 Group 0 Pid 3384 on Aliyun3 device 5 [0000:95:00] AMD Radeon Graphics
# Rank 6 Group 0 Pid 3385 on Aliyun3 device 6 [0000:e5:00] AMD Radeon Graphics
# Rank 7 Group 0 Pid 3386 on Aliyun3 device 7 [0000:f5:00] AMD Radeon Graphics
# Rank 8 Group 0 Pid 3315 on Aliyun1 device 0 [0000:05:00] AMD Radeon Graphics
# Rank 9 Group 0 Pid 3316 on Aliyun1 device 1 [0000:15:00] AMD Radeon Graphics
# Rank 10 Group 0 Pid 3317 on Aliyun1 device 2 [0000:65:00] AMD Radeon Graphics
# Rank 11 Group 0 Pid 3318 on Aliyun1 device 3 [0000:75:00] AMD Radeon Graphics
# Rank 12 Group 0 Pid 3319 on Aliyun1 device 4 [0000:85:00] AMD Radeon Graphics
# Rank 13 Group 0 Pid 3320 on Aliyun1 device 5 [0000:95:00] AMD Radeon Graphics
# Rank 14 Group 0 Pid 3321 on Aliyun1 device 6 [0000:e5:00] AMD Radeon Graphics
# Rank 15 Group 0 Pid 3322 on Aliyun1 device 7 [0000:f5:00] AMD Radeon Graphics
RCCL version : 2.27.7-HEAD:96a25b5
HIP version : 7.2.53211-671d39a71e
ROCm version : 7.2.2.0-86-671d39a71e
Hostname : Aliyun3
Librccl path : /opt/rocm/lib/librccl.so.1
#
# out-of-place in-place
# size count type redop root time algbw busbw #wrong time algbw busbw #wrong
# (B) (elements) (us) (GB/s) (GB/s) (us) (GB/s) (GB/s)
16 4 float sum -1 37.35 0.00 0.00 0 37.32 0.00 0.00 0
32 8 float sum -1 36.56 0.00 0.00 0 37.43 0.00 0.00 0
64 16 float sum -1 37.86 0.00 0.00 0 37.32 0.00 0.00 0
128 32 float sum -1 38.28 0.00 0.01 0 37.73 0.00 0.01 0
256 64 float sum -1 38.51 0.01 0.01 0 37.91 0.01 0.01 0
512 128 float sum -1 38.55 0.01 0.02 0 38.47 0.01 0.02 0
1024 256 float sum -1 42.14 0.02 0.05 0 41.79 0.02 0.05 0
2048 512 float sum -1 44.28 0.05 0.09 0 43.77 0.05 0.09 0
4096 1024 float sum -1 46.88 0.09 0.16 0 46.16 0.09 0.17 0
8192 2048 float sum -1 45.68 0.18 0.34 0 46.13 0.18 0.33 0
16384 4096 float sum -1 46.65 0.35 0.66 0 45.93 0.36 0.67 0
32768 8192 float sum -1 46.68 0.70 1.32 0 46.70 0.70 1.32 0
65536 16384 float sum -1 49.99 1.31 2.46 0 49.59 1.32 2.48 0
131072 32768 float sum -1 51.33 2.55 4.79 0 51.76 2.53 4.75 0
262144 65536 float sum -1 60.19 4.35 8.17 0 59.32 4.42 8.29 0
524288 131072 float sum -1 62.27 8.42 15.79 0 61.64 8.51 15.95 0
1048576 262144 float sum -1 69.03 15.19 28.48 0 68.26 15.36 28.80 0
2097152 524288 float sum -1 76.38 27.46 51.48 0 75.08 27.93 52.37 0
4194304 1048576 float sum -1 88.58 47.35 88.78 0 89.37 46.93 88.00 0
8388608 2097152 float sum -1 110.24 76.09 142.67 0 109.71 76.46 143.36 0
16777216 4194304 float sum -1 177.14 94.71 177.58 0 176.17 95.23 178.56 0
33554432 8388608 float sum -1 262.18 127.98 239.97 0 261.63 128.25 240.47 0
67108864 16777216 float sum -1 439.32 152.76 286.42 0 438.96 152.88 286.65 0
134217728 33554432 float sum -1 860.65 155.95 292.41 0 853.17 157.32 294.97 0
268435456 67108864 float sum -1 1355.74 198.00 371.25 0 1355.29 198.06 371.37 0
536870912 134217728 float sum -1 2668.77 201.17 377.19 0 2668.08 201.22 377.29 0
1073741824 268435456 float sum -1 5302.00 202.52 379.72 0 5287.42 203.07 380.77 0
2147483648 536870912 float sum -1 10580.6 202.96 380.56 0 10563.5 203.29 381.17 0
4294967296 1073741824 float sum -1 21033.4 204.20 382.87 0 21035.3 204.18 382.84 0
8589934592 2147483648 float sum -1 41862.6 205.19 384.74 0 41865.2 205.18 384.71 0
17179869184 4294967296 float sum -1 83456.7 205.85 385.98 0 83462.8 205.84 385.95 0
# Out of bounds values : 0 OK
# Avg bus bandwidth : 129.28
#
# Collective test concluded: all_reduce_perf
Avoid building by using docker image : docker pull prasadnairamd/rocm-multinode:7.2.2-complete Building RCCL docker takes half an hour. For building the docker clone the below repo . Do this on both the nodes you are trying to run the RCCL multi-node test :
git clone https://github.com/ROCm/rocm-systems.git -b users/atulkulk/mndock
cd /home/vultr/code/rocm-systems/projects/rccl/docker
time GPU_TARGETS="gfx950" python3 -m mnctl --launch-all --nic-type ainic --volume /home/vultr/fjw/drivers-linux:/root/cache/drivers-linux --post-setup post-setup/ --hostfile hostfile --dockerfile Dockerfile.Multinode.ALinux3 --verbose --rebuild 2>&1 | tee blddemo.log
How to run ( This step required only on one node, ensure that docker is running on both nodes)
docker exec -it rccl-mn /bin/bash
create a hostfile with following entry
[root@Aliyun3 workspace]# vim hostfile
66.42.116.72 slots=8
45.76.25.46 slots=8
running the test
[root@Aliyun3 workspace]# mpirun --mca btl_tcp_if_include eth1 --mca oob_tcp_if_include eth1 --hostfile hostfile -np 16 --allow-run-as-root -x NCCL_SOCKET_IFNAME=eth1 -x NCCL_IB_GID_INDEX=1 -x NCCL_GDR_FLUSH_DISABLE=1 -x NCCL_GDRCOPY_ENABLE=0 -x NCCL_IB_HCA=ionic_0,ionic_1,ionic_2,ionic_3,ionic_4,ionic_5,ionic_6,ionic_7 --mca btl ^vader,openib -x NCCL_IB_QPS_PER_CONNECTION=2 -x NCCL_IB_TC=104 -x NCCL_IB_FIFO_TC=184 -x NCCL_IGNORE_CPU_AFFINITY=1 -x NCCL_DEBUG=VERSION -x NET_OPTIONAL_RECV_COMPLETION=1 -x HSA_NO_SCRATCH_RECLAIM=1 -x RCCL_GDR_FLUSH_GPU_MEM_NO_RELAXED_ORDERING=0 -x NCCL_TOPO_DUMP_FILE=/tmp/system_run2.txt -x NCCL_IB_USE_INLINE=1 -x IONIC_LOCKFREE=all -x NCCL_PXN_DISABLE=0 /workspace/rocm-systems/projects/rccl-tests/build/alltoall_perf -b 16 -e 16G -f 2 -g 1 -n 20 -c 1 -w 5
[1776962610.613053] [Aliyun1:3557 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776962610.613053] [Aliyun1:3557 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776962610.834868] [Aliyun1:3561 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776962610.834868] [Aliyun1:3561 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776962610.887749] [Aliyun1:3556 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776962610.887749] [Aliyun1:3556 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776962610.965610] [Aliyun1:3560 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776962610.965610] [Aliyun1:3560 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776962611.086010] [Aliyun1:3554 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776962611.086010] [Aliyun1:3554 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776962611.100560] [Aliyun1:3555 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776962611.100560] [Aliyun1:3555 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776962611.240006] [Aliyun1:3559 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776962611.240006] [Aliyun1:3559 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
[1776962611.251829] [Aliyun1:3558 :0] parser.c:2033 UCX WARN unused environment variable: UCX_PREFIX
[1776962611.251829] [Aliyun1:3558 :0] parser.c:2033 UCX WARN (set UCX_WARN_UNUSED_ENV_VARS=n to suppress this warning)
# rccl-tests version 2.17.9-develop:4a65e8d rccl-headers=22707 rccl-library=22707
# Collective test starting: alltoall_perf
# nThread 1 nGpus 1 minBytes 16 maxBytes 17179869184 step: 2(factor) warmup iters: 5 iters: 20 agg iters: 1 validation: 1 graph: 0
#
# Using devices
# Rank 0 Group 0 Pid 3625 on Aliyun3 device 0 [0000:05:00] AMD Radeon Graphics
# Rank 1 Group 0 Pid 3626 on Aliyun3 device 1 [0000:15:00] AMD Radeon Graphics
# Rank 2 Group 0 Pid 3627 on Aliyun3 device 2 [0000:65:00] AMD Radeon Graphics
# Rank 3 Group 0 Pid 3628 on Aliyun3 device 3 [0000:75:00] AMD Radeon Graphics
# Rank 4 Group 0 Pid 3629 on Aliyun3 device 4 [0000:85:00] AMD Radeon Graphics
# Rank 5 Group 0 Pid 3630 on Aliyun3 device 5 [0000:95:00] AMD Radeon Graphics
# Rank 6 Group 0 Pid 3631 on Aliyun3 device 6 [0000:e5:00] AMD Radeon Graphics
# Rank 7 Group 0 Pid 3632 on Aliyun3 device 7 [0000:f5:00] AMD Radeon Graphics
# Rank 8 Group 0 Pid 3554 on Aliyun1 device 0 [0000:05:00] AMD Radeon Graphics
# Rank 9 Group 0 Pid 3555 on Aliyun1 device 1 [0000:15:00] AMD Radeon Graphics
# Rank 10 Group 0 Pid 3556 on Aliyun1 device 2 [0000:65:00] AMD Radeon Graphics
# Rank 11 Group 0 Pid 3557 on Aliyun1 device 3 [0000:75:00] AMD Radeon Graphics
# Rank 12 Group 0 Pid 3558 on Aliyun1 device 4 [0000:85:00] AMD Radeon Graphics
# Rank 13 Group 0 Pid 3559 on Aliyun1 device 5 [0000:95:00] AMD Radeon Graphics
# Rank 14 Group 0 Pid 3560 on Aliyun1 device 6 [0000:e5:00] AMD Radeon Graphics
# Rank 15 Group 0 Pid 3561 on Aliyun1 device 7 [0000:f5:00] AMD Radeon Graphics
RCCL version : 2.27.7-HEAD:96a25b5
HIP version : 7.2.53211-671d39a71e
ROCm version : 7.2.2.0-86-671d39a71e
Hostname : Aliyun3
Librccl path : /opt/rocm/lib/librccl.so.1
#
# out-of-place in-place
# size count type redop root time algbw busbw #wrong time algbw busbw #wrong
# (B) (elements) (us) (GB/s) (GB/s) (us) (GB/s) (GB/s)
0 0 float none -1 0.06 0.00 0.00 0 0.04 0.00 0.00 N/A
0 0 float none -1 0.04 0.00 0.00 0 0.04 0.00 0.00 N/A
0 0 float none -1 0.04 0.00 0.00 0 0.04 0.00 0.00 N/A
0 0 float none -1 0.04 0.00 0.00 0 0.04 0.00 0.00 N/A
256 4 float none -1 38.61 0.01 0.01 0 37.29 0.01 0.01 N/A
512 8 float none -1 39.15 0.01 0.01 0 37.41 0.01 0.01 N/A
1024 16 float none -1 37.45 0.03 0.03 0 61.84 0.02 0.02 N/A
2048 32 float none -1 37.35 0.05 0.05 0 38.31 0.05 0.05 N/A
4096 64 float none -1 38.75 0.11 0.10 0 37.73 0.11 0.10 N/A
8192 128 float none -1 37.85 0.22 0.20 0 38.77 0.21 0.20 N/A
16384 256 float none -1 34.52 0.47 0.44 0 35.31 0.46 0.44 N/A
32768 512 float none -1 36.62 0.89 0.84 0 35.34 0.93 0.87 N/A
65536 1024 float none -1 36.97 1.77 1.66 0 36.43 1.80 1.69 N/A
131072 2048 float none -1 36.78 3.56 3.34 0 38.77 3.38 3.17 N/A
262144 4096 float none -1 40.67 6.45 6.04 0 40.13 6.53 6.12 N/A
524288 8192 float none -1 45.42 11.54 10.82 0 45.51 11.52 10.80 N/A
1048576 16384 float none -1 54.99 19.07 17.88 0 55.90 18.76 17.59 N/A
2097152 32768 float none -1 66.22 31.67 29.69 0 65.77 31.89 29.89 N/A
4194304 65536 float none -1 87.84 47.75 44.76 0 88.12 47.60 44.62 N/A
8388608 131072 float none -1 160.22 52.36 49.09 0 132.22 63.44 59.48 N/A
16777216 262144 float none -1 223.32 75.13 70.43 0 219.45 76.45 71.67 N/A
33554432 524288 float none -1 401.10 83.66 78.43 0 401.56 83.56 78.34 N/A
67108864 1048576 float none -1 750.95 89.37 83.78 0 750.44 89.43 83.84 N/A
134217728 2097152 float none -1 1449.19 92.62 86.83 0 1449.73 92.58 86.80 N/A
268435456 4194304 float none -1 2884.99 93.05 87.23 0 2866.37 93.65 87.80 N/A
536870912 8388608 float none -1 5711.08 94.01 88.13 0 5708.98 94.04 88.16 N/A
1073741824 16777216 float none -1 11253.5 95.41 89.45 0 11254.5 95.41 89.44 N/A
2147483648 33554432 float none -1 22288.5 96.35 90.33 0 22289.7 96.34 90.32 N/A
4294967296 67108864 float none -1 44361.2 96.82 90.77 0 44361.6 96.82 90.77 N/A
8589934592 134217728 float none -1 88508.6 97.05 90.99 0 88509.2 97.05 90.99 N/A
17179869184 268435456 float none -1 176806 97.17 91.09 0 176804 97.17 91.10 N/A
# Out of bounds values : 0 OK
# Avg bus bandwidth : 36.0754
#
# Collective test concluded: alltoall_perf
